Plettenberg’s New Motors – Ready for Real Airplanes?

Plettenberg is well known in the model airplane world for its large and powerful electric motors that pull or push giant-scale models – sometimes half the size of their real counterparts – into the air.  Brian Carpenter of Rainbow Aviation is even using them on his EMG-5 and EMG-6 ultralight aircraft.  Jean-Luc Soullier had two of them on an electric Cri-Cri.  His forum details that adventure and subsequent projects.  These Predator motors weigh a little over four pounds and can put out 15 horsepower and up to 99 pounds of thrust with the right propeller.

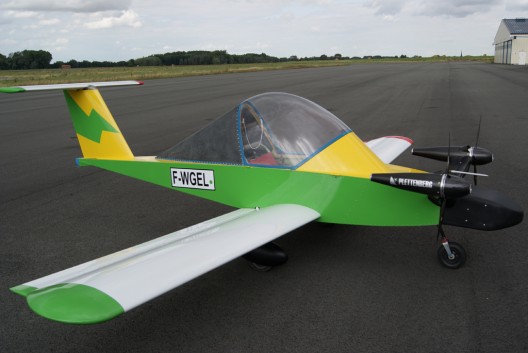

Jean-Luc Soullier’s Plettenberg-powered Cri-Cri

Going beyond their model motors, Plettenberg has bold thoughts to share about its new, bigger and less model-like units, including their 150 kilowatt Nova series motor.

“The guiding principle for the development of the Nova series was the creation and development of a completely new product and not the development of existing systems.

“Combining intelligently selected materials and components together with innovative, ground-breaking geometries made these unique actuators possible.

“Here, the experience of the high-performance models of sport, led in recent years to win multiple world titles, contributed to the development of engines and are from the 2013 season in the e-bike racing series TTXGP feed. The NOVA 150 will be the drive to beat, because the experienced team at the world champion of 2010, 2011 and Vice World Champion 2012 racing season starts this with him chasing the title in 2013!”

Review of current racers in the TTXGP lineups do not reveal a bike with a Plettenberg on board, but that may change during the season.

The Nova 15 looks like an apt possibility for ultralight aircraft use, weighing a mere 2.5 kilograms (5.5 pounds) and putting out 15 kilowatts (20.1 horsepower) and 30 Newton-meters (22 foot-pounds) of torque at 4,900 rpm when driven by 80 Volts.  Plettenberg claims 92-percent efficiency for the Nova 15.

Their Nova 30 produces 30 kW (40.2 hp) from five kilograms (11 pounds) at 120 Volts.  It generates 105 Newton-meters (77.4 foot-pounds) of torque and can top out at 3,300 rpm at 93-percent efficiency.

Plettenberg’s new Nova 30 motor – over 40 hp from 11 pounds and just right for your next giant-scale model or small ultralight

The 150, according to Plettenberg’s web site, seems destined to be a challenger in electric motorcycle racing, putting out a very competitive 150 kilowatts (201 hp) from 11.5 kilograms (25.3 pounds) and 250 Nm (184.4 ft.-lbs.) of torque with 95-percent efficiency.  A higher-voltage unit than its smaller brethren, the 150 pulls 350 Volts at full power.

All are small for their output, compact pancakes ranging from 87 millimeters to 104.7 millimeters (3.42 to 4.125 inches) in thickness and from 124 mm to 310 mm (4.875 to 12.20 inches) in diameter.

Finding most commercially-available units too big and heavy for its purposes, Plettenberg teamed with MST to develop two motor controllers that would match their “self-imposed standards of quality and optimization,” epitomized by their motors

The smaller MST 140-200 controller weighs 1.3 kg. (2.86 pounds) and can handle continuous outputs of 30 kW and a peak power of 40 kW.   Its “big brother,” the MST 400-400 weighs a bit more, 2.9 kg. (6.38 pounds) and can manage a continuous output of 120 kW and a peak power of 160 kW.  It is equipped with an integrated water cooling.

These are high-end motors compared to their model counterparts, the 15 kW model costing over $3,000 at current rates of exchange, with bigger motors probably proportionally more.   As such, they will probably find a market for applications where light weight and power are more important than cost.  In the aviation market, these are not “high-end” at all compared to other powerplants available.

{ 4 comments… add one }
  • Binder 09/06/2013, 1:42 am

    We are looking for people to help us with all the paperwork, while changing a CRI CRI to electric power.
    regards K. Binder

    (Editor’s Note: Mr. Binder intends to use Plettenberg motors. Can anyone provide assistance? Mr. Binder is in Germany, so would have to abide by that country’s rules.)

  • Binder, Karl 09/10/2013, 7:26 am

    Thank you, but the CRI CRI has a french registation Nr. and should operate with F-P…..
    regards K. Binder

  • Carmelo 01/22/2014, 4:25 pm

    At last, and thanks to an OUTSTANDING firm like PLETTENBERG, we developers, passionate builders and innovators of new things will have the proper stuff to work with, with [a] lot of chance of success.
    I believe that the NOVA 30 is fantastic engineering, and if it is sold to a reasonable price, whether the single unit engine or what would be preferable, the whole thing – engine + optimized controller – This set will be a REAL WINNER, and will [make others obsolete].

    I wish, hope, expect and look forward PLETTENBERG will sell THOUSANDS of units, it is the time to go GREEN.

    thanks
    kar

    (Editor’s Note: The blog does not endorse products, and cautions readers to investigate thoroughly before committing to the purchase of any particular item or items. Plettenberg has a good history as a maker of high-end model aircraft motors, but the NOVA series is a significant step up in price and is new to the market. We look forward to hearing from those who are early adaptors of this promising set of new motors.)

  • masoud emaratsaz 06/06/2015, 5:30 pm

    Would you tell me how much cost nova 15 with 20horse power?
    Thank You

    (Editor’s Note: Endless-sphere.com reports in one of their forums:
    “The price for the Nova 15 in the air cooled version is about 2.101,00 Euro [2814 USD today].
    We can produce the motor also with a water cooling, the price for the water
    cooled version is about 2.321,00 Euro [3108 USD today]. This price is included the German Tax
    of 19 %, you have to add the shipping cost dependent from the country you
    are from. If there are modification needed in for example the shaft or
    housing or so on we charge also this add cost.

    “The recommended controller is our MST 140-200, this controller is 1547,00
    Euro [2072 USD today].”

    http://endless-sphere.com/forums/viewtopic.php?f=30&t=50929&hilit=plettenberg+nova )
